HF6164 Fleetguard BT8301 Equiv

Overview

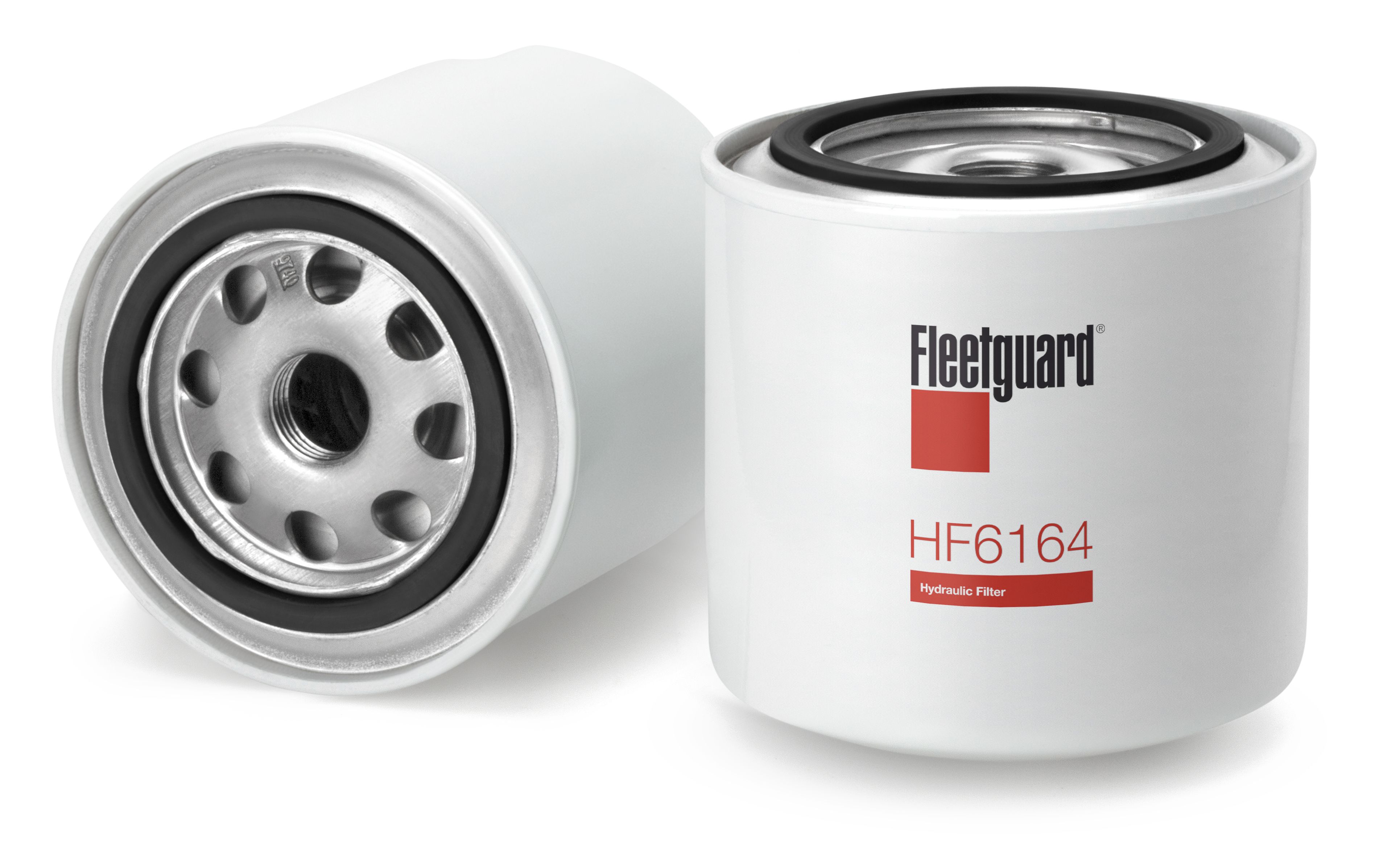

The Cummins Fleetguard HF6164 hydraulic filter is engineered to perform admirably under demanding conditions. It captures and removes contaminants effectively, safeguarding your equipment's hydraulic systems from potential damages. Its spin-on design allows for easy installation and replacement, making maintenance tasks straightforward and hassle-free. The commitment to quality, backed by the best warranty in the business, makes it the top choice for professionals relying on efficient filtration solutions.

---

Specification

Brand: Fleetguard
Part Number: HF6164
Media Type: Cellulose
Overall Height: 97.71 mm
Largest OD: 93.52 mm
Gasket OD: 71.98 mm
Thread Size: 3/4-16 UNF-2B
BPV Setting: 0 kPa
TWA MICRON @ BETA=2: 16 micron
Primary Applications: John Deere AM39653

---

Technical

Recommended for use in hydraulic systems to ensure clean fluid delivery. Regularly replace the filter as part of standard maintenance protocols to preserve system integrity and prolong equipment lifespan. Ensure installation under qualified supervision to meet manufacturer's specifications.

---

Benefits

Prolongs the life of hydraulic systems by effectively filtering out contaminants, ensuring smooth operation and reduced maintenance costs over time. The easy spin-on design simplifies replacement, and its comprehensive warranty offers peace of mind.

---

Install

1. Unscrew the used filter from the hydraulic system using a filter wrench. 2. Check the threaded mounting surface for any debris or old gasket material and clean it if necessary. 3. Lightly coat the gasket of the new filter with hydraulic fluid to ensure a proper seal. 4. Screw on the new filter by hand, ensuring it's snug but not over-tightened. 5. Start the hydraulic system and inspect for leaks around the filter.

---

Fitment

Compatible with a range of equipment including John Deere models like AM39653. Ideal for use in hydraulic systems of medium-duty industrial and agricultural machinery.

---

Cross Reference

Gmc
25012648

John Deere
9700836

New Holland
TR98D3596

Nissan
15208W1194

Nissan (nissan)
15208W1194

Simplicity
1650954

Sterling
HF6164N1

Sterling Truck
HF6164N1

Sundstrand
9700314TR98D3596 - NEW HOLLAND (Direct Replacement)

---

FAQ

Question: What is the recommended replacement interval for this filter?

It's recommended to replace the filter during each scheduled hydraulic system maintenance or as indicated by a pressure drop across the filter.

Question: Can this filter be recycled?

Yes, as part of responsible disposal practices, used filters can be recycled following local guidelines.

Question: Is the gasket replaceable?

The gasket is part of the filter and should be replaced with the filter to ensure proper sealing.

Question: What does the BPV setting mean?

BPV, or By-pass Valve setting, is the pressure at which the filter's internal by-pass valve activates to prevent filter element rupture.

Question: How does the filter media impact performance?

The cellulose filter media effectively captures contaminants, which enhances hydraulic system performance by maintaining cleaner fluid.

Question: What is the flow capacity of this filter?

The specific flow capacity depends on the installation and system pressure, best reference detailed system specifications for precise details.

Question: Are there alternative products available?

Yes, alternative products include cross-references such as Baldwin BT8301 and Donaldson P550940.

---

LENGTH

97.71

---

Thread 02

3/4-16 UNF-2B

---

Related Parts

Refer to John Deere AM39653 for compatible parts.

---

Inventory Extended Details

Fleetguard HF6164 is a spin-on hydraulic filter known for its OEM standard performance and durability. It is a reliable replacement part that efficiently filters out contaminants from hydraulic fluids, ensuring smooth operation of hydraulic systems. Featuring cellulose media, it maintains clean fluid circulation, thereby protecting sensitive components like pumps and valves from damage. Fleetguard filters are backed by comprehensive warranties, ensuring trust and confidence in their longevity and efficiency.

---
